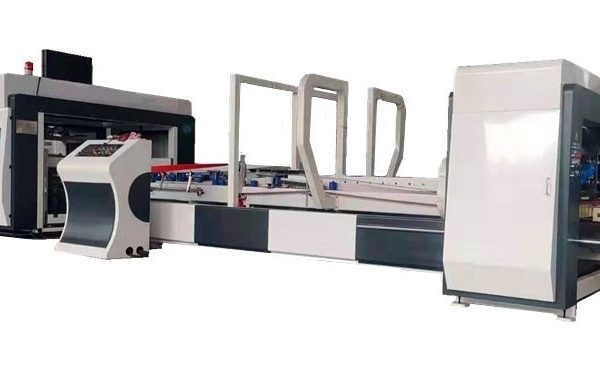

Imported Double Pc Box Stitching Machine
Capability and Features
- Four servo motor drive imported from Fujee /delta
- Accurate precision, reduce the mechanical transmission parts, can effectively reduce the mechanical failure rate.
- The whole control system adopts Delta PLC control system
- Control the contactor in the cabinet are all of international brand.
- Relays, circuit breaker adopts international brand, photoelectric and proximity switch adopts top international brand.
- Bottom die , blade adopt Japan’s tungsten steel production (wear)
- The whole stitch head adopt specifically tungsten, CNC precision machining
- Change carton size and adjust carton nail distance only take one minute can be completed, greatly save time it is easy to operate.
- Can nail box & has a lid without cover carton box (with and without cover is required at time of order to nail in mechanical specification).
- After a period of automatic counting function, completes the product number can be set according to the number (1-99) fold, to the end of the conveying machinery, convenient packing banding.
- Machine : 600 nail/min
- Nail distance: 30-120mm Arbitrary adjustable
- A dual purpose, i can stitch single piece and double piece, and irregular carton
- Size adopt full computerized control, change size only take 2-3mins
- Can stitch strengthen nail, single nail , double nail, once complete
- Feed automatic counting, finished product is sent out banding
- Suitable for small and medium carton, binding quickly and save labor, there is no limit to the technology:
- Adjustment nail distance , use computer set up , adjust nail distance automatically, nail distance30-120mm arbitrary adjustable
- The machine adopts computer screen display failure.
- The bottom without cover carton also can nail (special)
- Used three layer, five layer corrugated cardboard, seven layers (seven layers need special instructions)
- The machine adopt four servo motors( two motor for stitch head , another two for nail distance motor)
- The whole machine order adjustment(optional)
TAble
| Model and technical data | 3000 |
| Max. Paper size（A+B*2(mm) | 5500 |
| Min. Paper size（A+B*2(mm) | 1060 |
| Max. Carton length A mm | 2750 |
| Min. Carton length A mm | 350 |
| Max. Carton width B mm | 1500 |
| Min. Carton width B mm | 120 |
| Max. Carton width（C+D+C）(mm) | 2500 |
| Max. Carton width（C+D+C）(mm) | 400 |
| Max. Shake cover size C(mm) | 560 |
| Min. Shake cover size C(mm) | 50 |
| Max. Height D(mm) | 2000 |
| Min. Height D(mm) | 150 |
| Max.Nail the tongue width (mm) | 45 |
| Nail distance mm | 30-120 |
| Nail of number | 1-99 |
Related Product

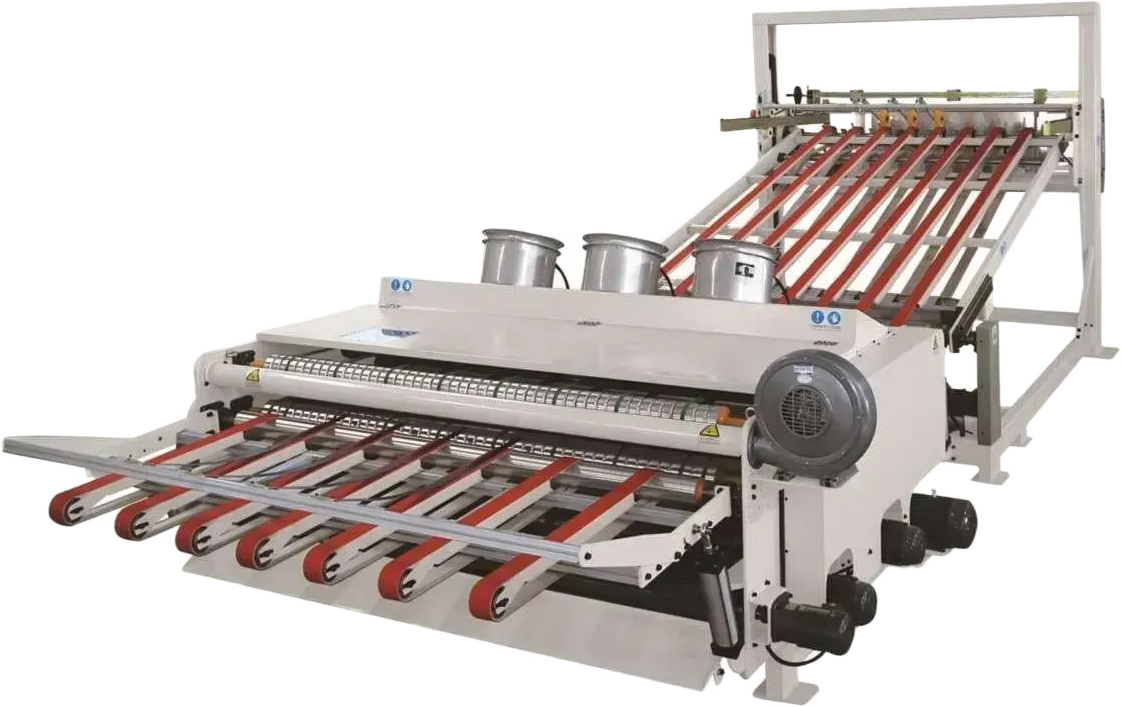

Imported 5 Ply Fully Automatic Flute Laminator
Fully automatic multilayer flute laminator consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

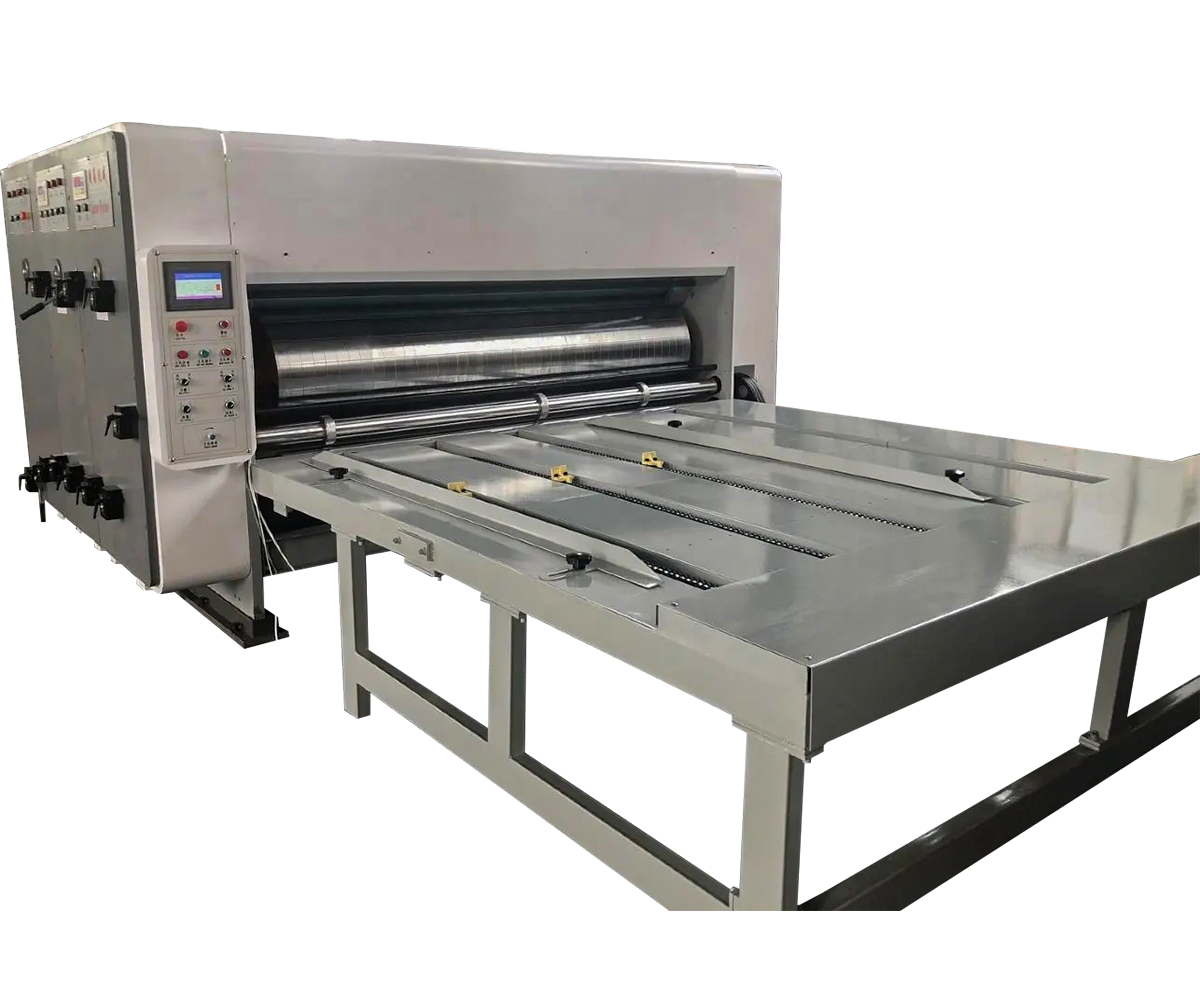

Imported Chain Feeder Printer With Rotary Die Machine
Our Rotary Die Cutting Machine comes with a slotting attachment and can be used to slot, crease, die cut and optionally print paper corrugated boards in one shot. Slotting attachment helps save changeover time and die costs for regular slotted (master or shipper) cartons. Rotary Die technology is more robust in handling corrugated boards from manual or semi automatic plants due to better ability to convert boards with higher moisture content. Hence they are universally preferred in Indian subcontinent, African, Middle Eastern, Vietnam and other markets where manual, semi automatic and automatic plants are found in equal proportion.

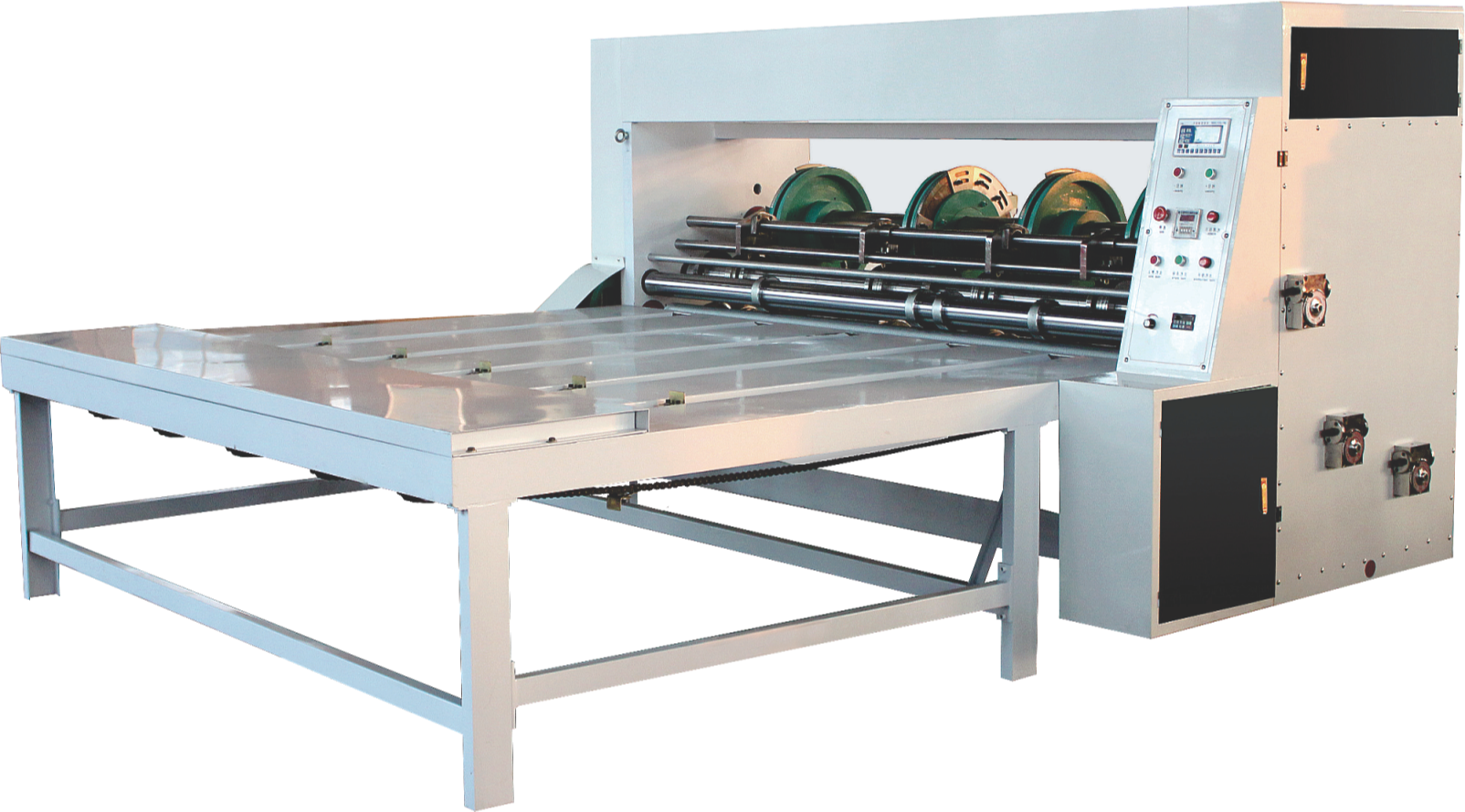

Imported Chain Feeder Rotary Creaser Slotter (Rs.4) Machine
This machine is basic requirement of corrugated box industry to slot/slit scoring after height creasing and slitting of board to make corrugated box
Our unique strengths for Combined Rotary Slotter Machine (Carton Box Making Machine):
- Over a decade of R&D to custom design and perfect the product for Indian subcontinent
- 1,000+ installations live in slotter family
- Highly trained and nuanced team of installation technicians
- 24*7 availability of complete range of spares and accessories (only such platform in India).

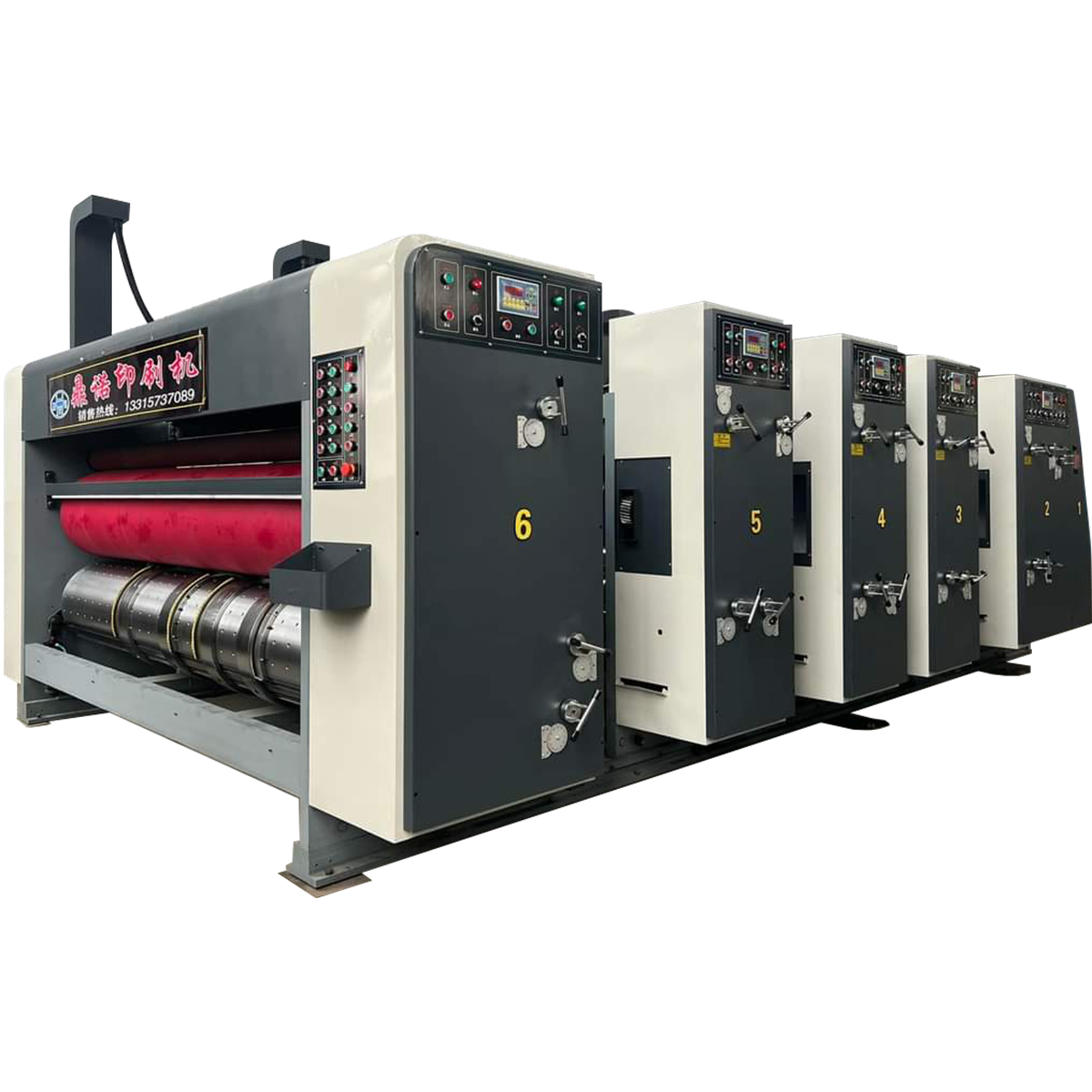

Imported Economical Leadedge Printer Slotter Rotary Die Cutting Machine With Stacker
The Imported Economical Leadedge Printer Slotter Rotary Die Cutting Machine with Stacker is a versatile and high-performance solution for printing, slotting, and die-cutting. It features premium components from Siemens and Schneider for reliable performance, precision-engineered shafts and rollers, and advanced gear technology with a robust transmission system. The machine offers automatic lubrication, easy gap adjustments, and energy efficiency through frequency conversion control. Customizable options, such as rotary die-cutting and ceramic anilox rollers, make it adaptable to diverse production needs.

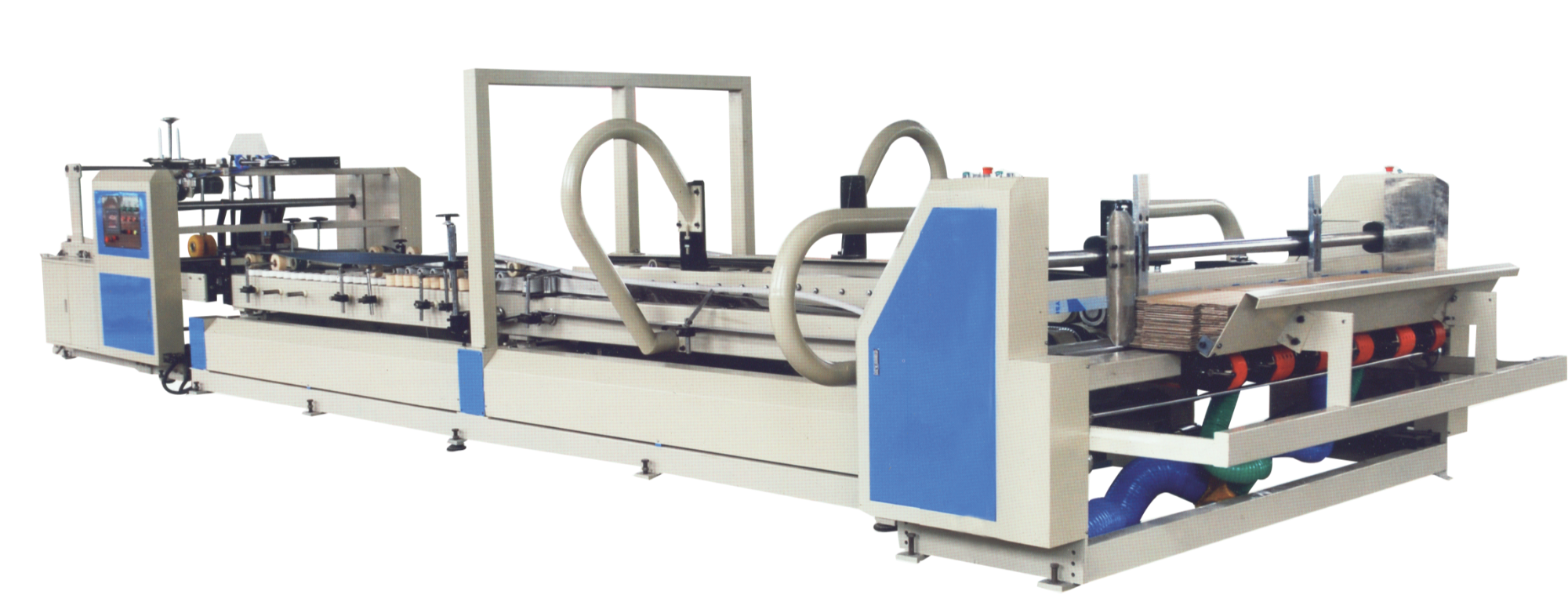

Imported Fully Automatic Folder Gluer Machine
Automatic folder gluer is consist of three parts which are feeding paper part, glue folding part and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting and stacking with output. Gluing speed can reach to 150m/min, energy-saving, labor saving.
Imported Fully Automatiic Box Stitcher And Gluer Combine Model Machine
The automatic nail-stick box integrated machine is a high-efficiency system for box production, featuring four key sections: Paper Supply, Glue Folding, Stitching and Pressing, and Counting and Stacking. It offers digital speed control, automatic functions, and a production speed of up to 220 sheets per minute. The machine prioritizes energy savings and environmental protection, using advanced motor frequency conversion and Siemens AC contactors for stable operation. It includes a user-friendly touch interface with a Panasonic PLC, ensuring ease of use, maintenance, and future upgrades. Designed for reliability and efficiency, it meets European safety standards.

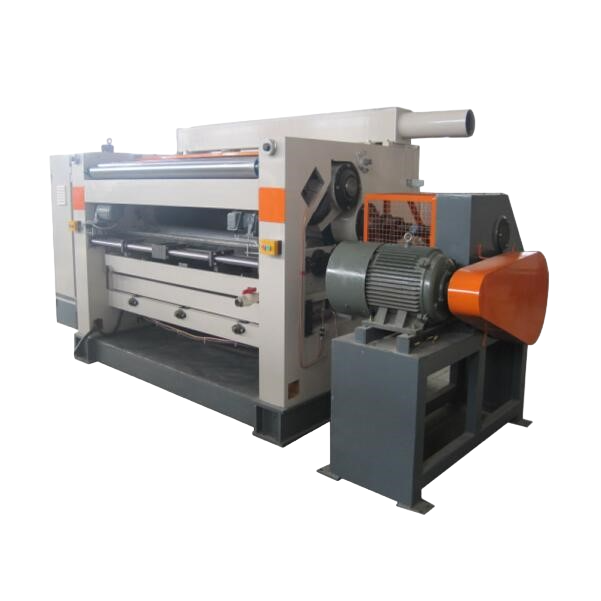

Imported High Speed Square Body Single Facer
The machine is designed for efficient, precise, and user-friendly operation. It features a suction hood structure with a high-pressure blower and silencer for effective material handling and noise reduction. Centralized air and electrical controls enhance safety, while the robust construction ensures durability. A steam spray device regulates core paper moisture, optimizing processing. The advanced drive system, equipped with a frequency conversion motor and durable corrugated rollers, offers precise speed control and quick flute type changes. The machine includes a sophisticated glue section with automated supply, precise control, and easy maintenance, all managed via a touch screen interface for enhanced usability.
Imported Partition Slotter With Stacker
The Automatic Partition Slotting Machine efficiently streamlines the slotting process for corrugated paperboard. It features adjustable side, back, and front baffles to accommodate various board sizes, ensuring precise alignment. With calibrated suction and adjustable slotting knives, the machine offers accurate and automated feeding, producing clean slots with minimal effort.
Imported Semi-automatic Folder Gluer Machine
Our Combined Pressure folder gluer allows both universal and die cut corrugated cartons to be flap pasted. Comes with auto feeder, grinder and combined pressure belt.
The most loved folder gluer machine for corrugated boxes and mono-cartons. Laminated/coated/printed corrugated board can also be pasted on this machine using an additional grinding attachment.
The grinder makes an incision on the laminated/coated surface to apply the gum clinically so that flap can be pasted securely.

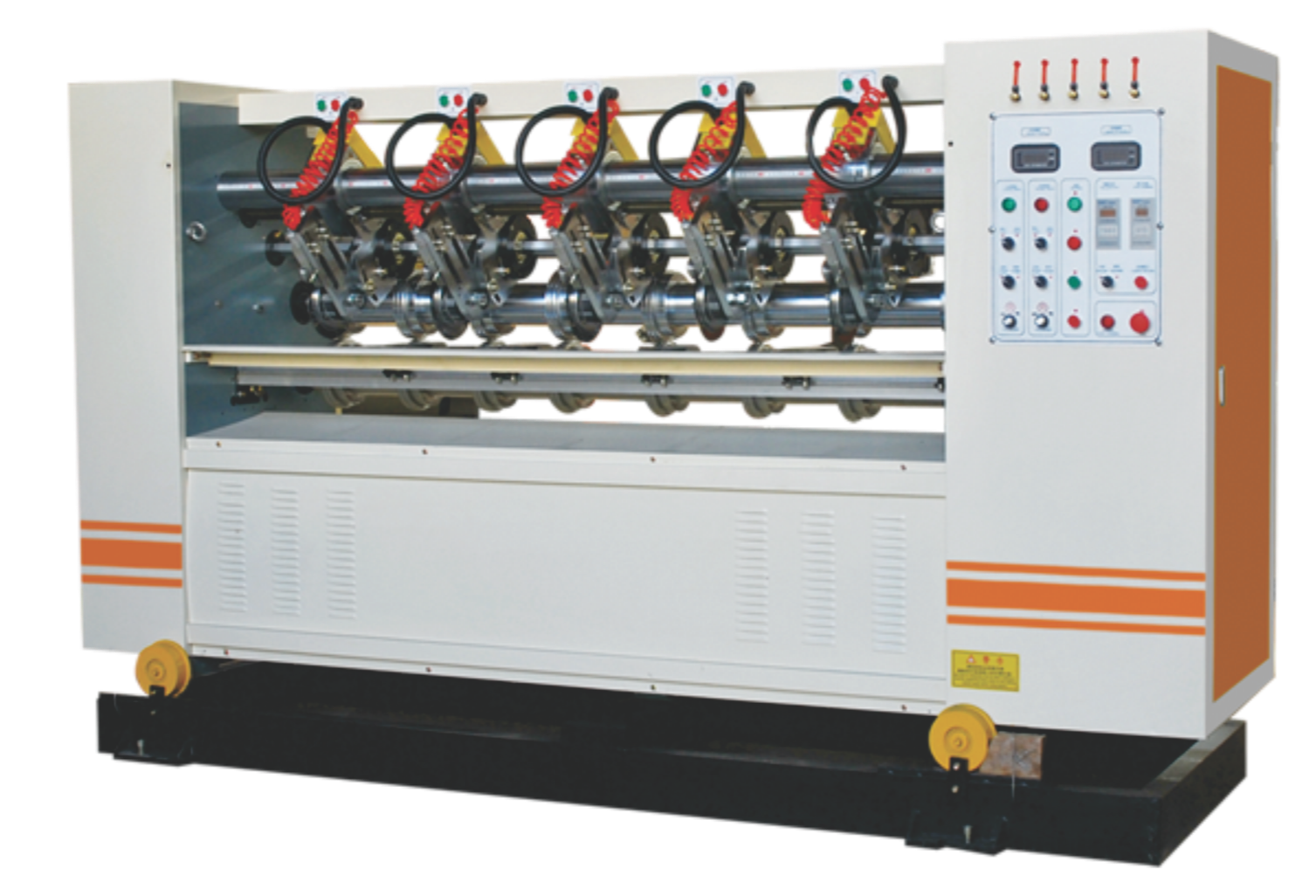

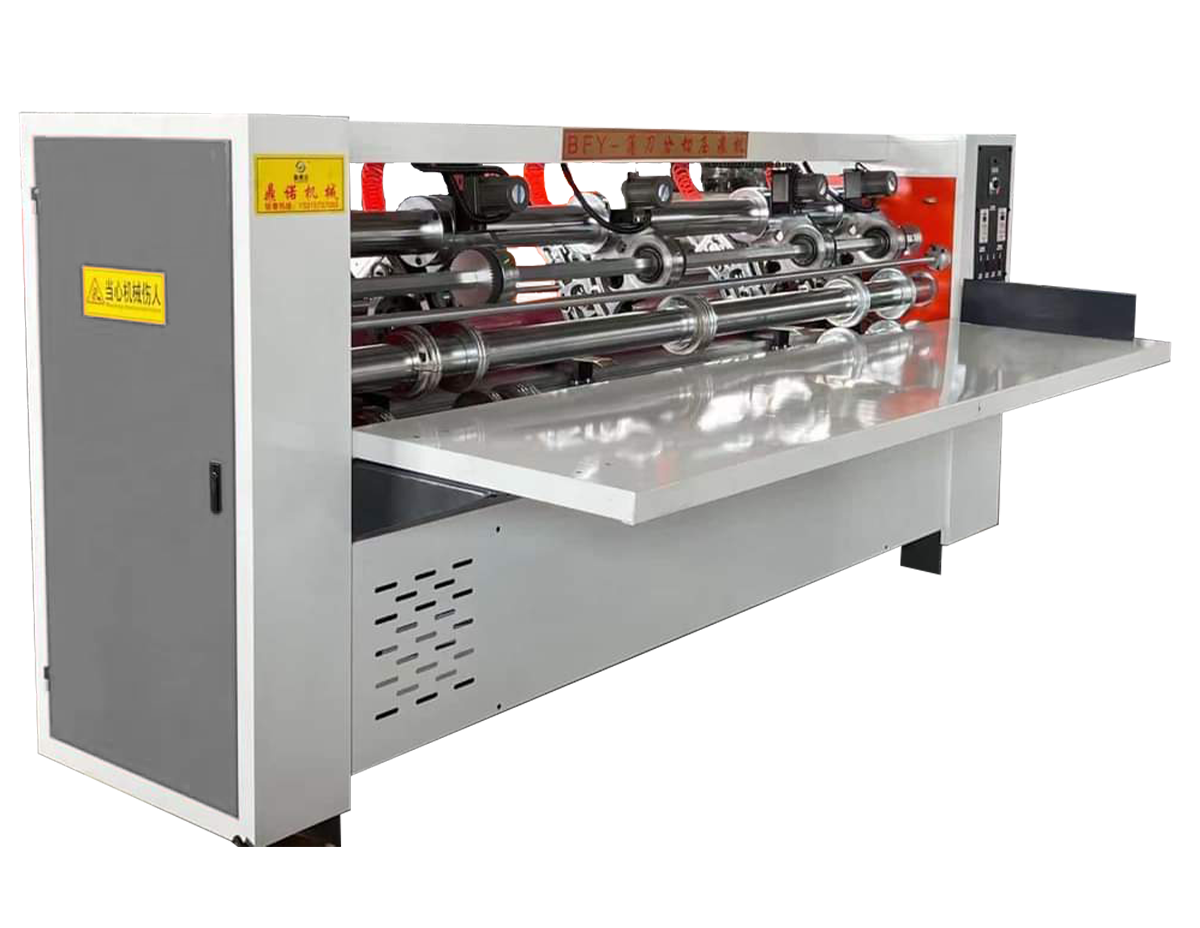

Imported Thin Blade Electric Adjust Thin Blade Slitter Scorer Machine
Thin Blade Slitter Scorer Machine allows you to adjust slitter and scoring blades with push of a button and pneumatically lock them at the right position. It is our must have offering for commercial corrugation manufacturers who are looking to produce high quality corrugated boxes at a high speed while preserving the edges and flutes.
featured product

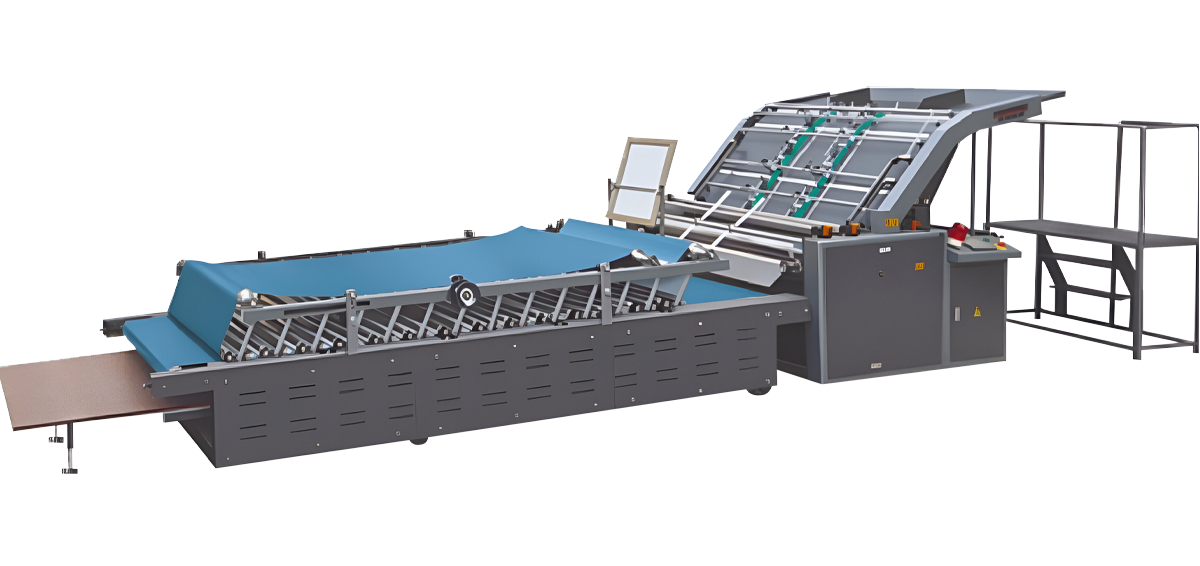

Imported 3 Ply Semi Automatic Flute Laminator
