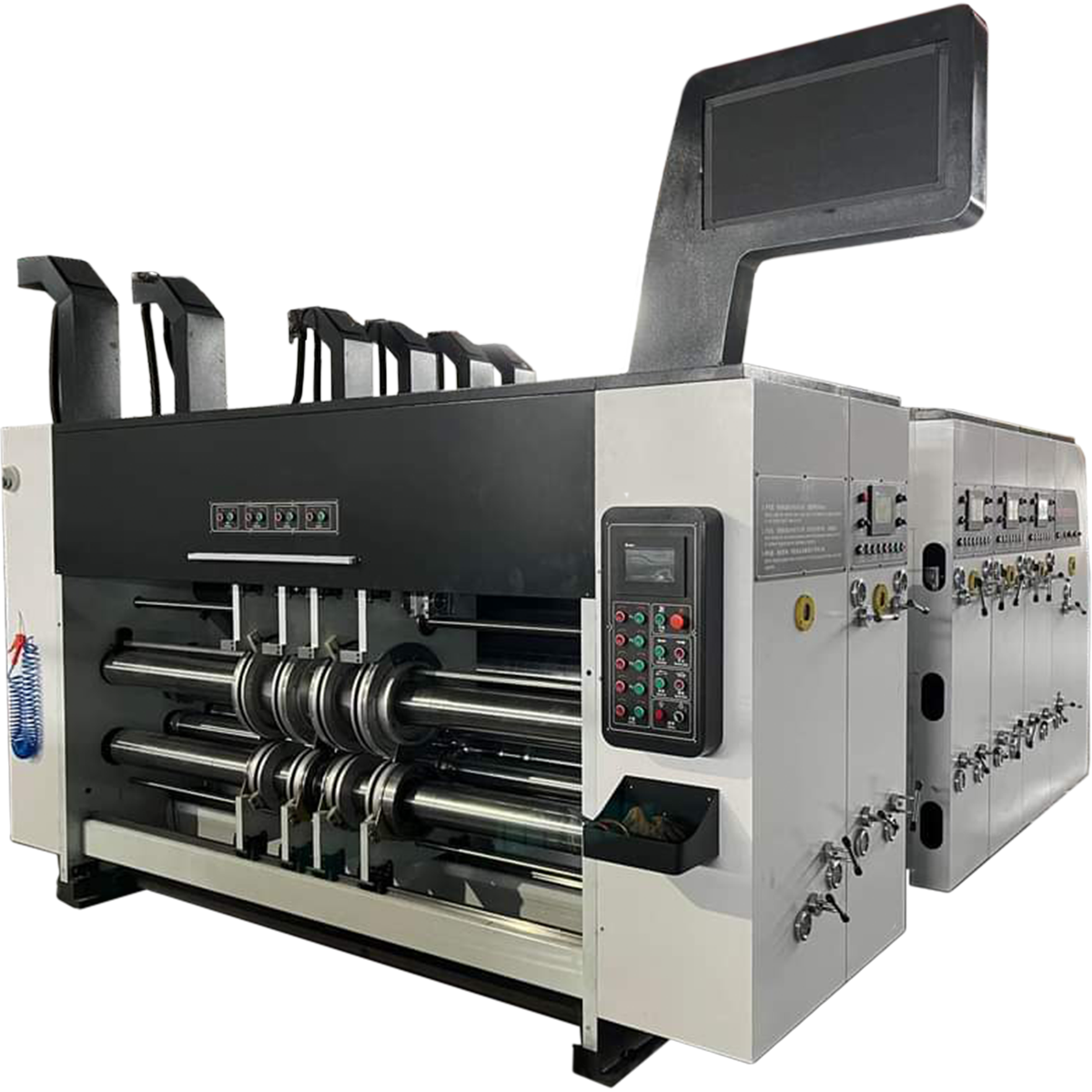

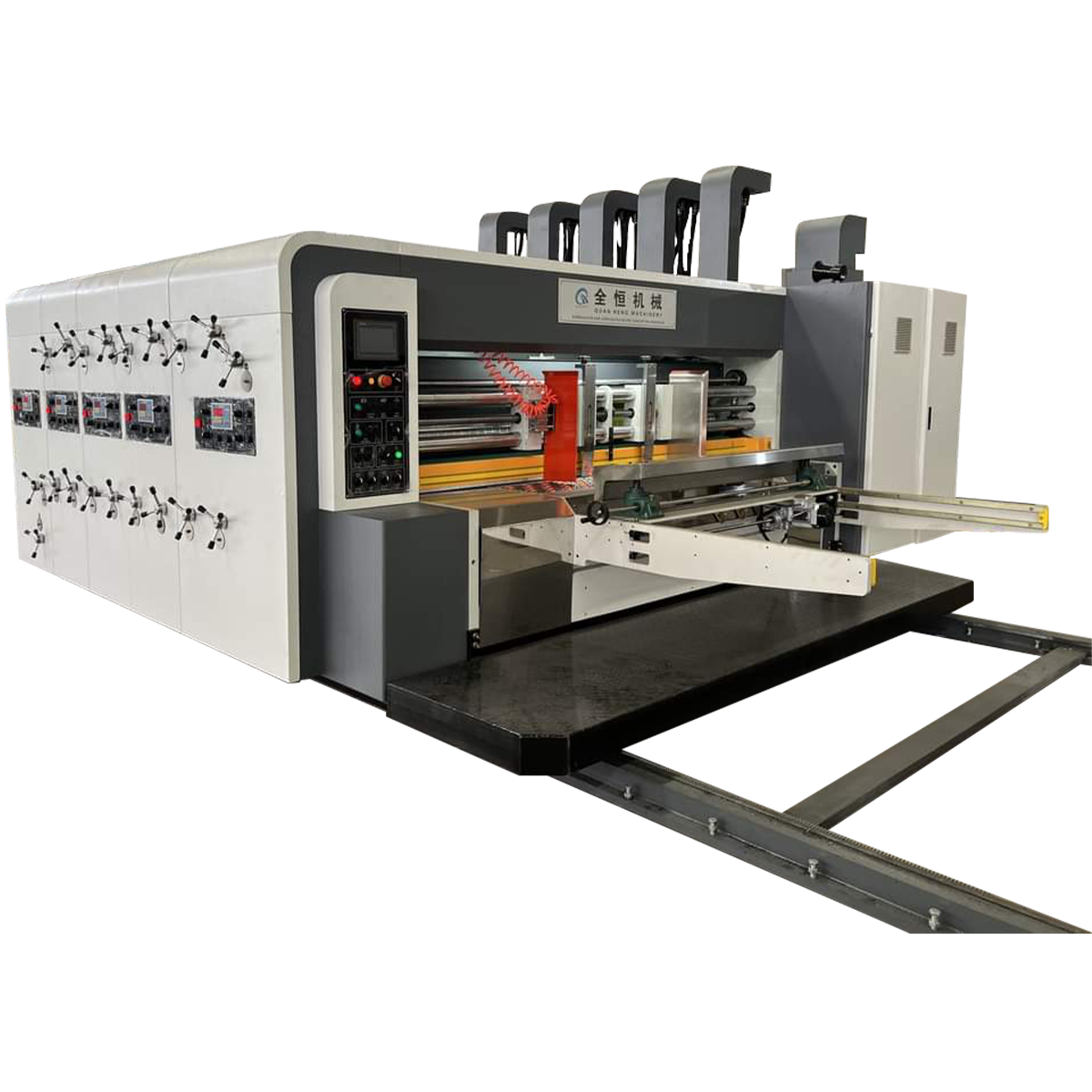

Imported High Speed Model Leadedge 2 Colour Printer Slotter And Rotary Die Machine With Stacker
Capability and Features
Related Product
Imported Chain Feeder Printer With Rotary Die Machine
Our Rotary Die Cutting Machine comes with a slotting attachment and can be used to slot, crease, die cut and optionally print paper corrugated boards in one shot. Slotting attachment helps save changeover time and die costs for regular slotted (master or shipper) cartons. Rotary Die technology is more robust in handling corrugated boards from manual or semi automatic plants due to better ability to convert boards with higher moisture content. Hence they are universally preferred in Indian subcontinent, African, Middle Eastern, Vietnam and other markets where manual, semi automatic and automatic plants are found in equal proportion.
Imported Fully Automatic Folder Gluer Machine
Automatic folder gluer is consist of three parts which are feeding paper part, glue folding part and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting and stacking with output. Gluing speed can reach to 150m/min, energy-saving, labor saving.
Imported High Speed Leadedge Printing Slotter And Rotary Die Cutting With Attached Flexo Folder Gluer Machine (FFG)
The Flexo Folder Gluer enhances production efficiency with its user-friendly features and robust design. It includes an intuitive HMI for easy operation, a Shark Anvil Trimming System for continuous performance, and a Lead-Edge Feeder with durable belts for precise sheet control. The flexographic print section offers high-quality prints with a harmonic drive register system and consistent surface speed. The folding section minimizes jams and ensures accurate folds, while the top-loading counter ejector streamlines stacking and counting. Known for its durability, the machine handles diverse product designs with high quality and efficiency.
Imported High Speed Single Facer With Vimble Drive
The Imported Fingerless Corrugation Machine operates efficiently at 35 meters per minute, featuring a robust design with 280 mm flute rolls and 300 mm pre-heater rolls for precise corrugated board formation. It includes a 290 mm pressure roll with dual motor-powered gum application, a Delta AC drive for seamless speed control, and pneumatic controls for roller lifts. Vacuum suction and air conditioning stabilize high-speed production, while durable 46 CrMo alloy steel corrugated rollers and high-temperature bearings ensure reliable performance.
Imported High Speed Square Body Single Facer
The machine is designed for efficient, precise, and user-friendly operation. It features a suction hood structure with a high-pressure blower and silencer for effective material handling and noise reduction. Centralized air and electrical controls enhance safety, while the robust construction ensures durability. A steam spray device regulates core paper moisture, optimizing processing. The advanced drive system, equipped with a frequency conversion motor and durable corrugated rollers, offers precise speed control and quick flute type changes. The machine includes a sophisticated glue section with automated supply, precise control, and easy maintenance, all managed via a touch screen interface for enhanced usability.
Imported Hyraulic Shaftless Reel Stand
The Imported Hydraulic Reel Stand offers efficient reel paper handling with motorized controls for lifting, lowering, and positioning. It supports reel papers up to 1500 mm in diameter, with adjustable clamping widths from 600 mm to 2000 mm. The stand features manual tension control via brakes and a 6 kW power system for robust performance. Safety is enhanced by a cycloid motor that prevents overload, ensuring reliable and secure operation in production environments.
Imported Press Type Folder Gluer Machine
The Pressing Type Semi-Automatic Box Gluing Machine combines efficiency and precision with advanced technology and high-quality steel. It processes 40-60 sheets per minute and features an intelligent digital counter for streamlined operation. The stainless steel coating section resists rust and accommodates various adhesives, while optional pasting wheel models cater to different needs. The high-strength conveyor belt system ensures smooth, damage-free transport of cartons, maintaining quality throughout the gluing process.
Imported Sheet Cutter PLC And NC Cutter
The Imported Programming Sheet Cutter Machine offers high-precision cutting with a double knife system and anti-backlash gear for accurate cuts. It integrates with production lines through computerized synchronization and features an advanced man-machine interface for easy operation. Capable of storing up to 99 orders and cutting with an accuracy of ±1 mm, the machine supports variable sheet lengths and ensures consistent quality with minimal waste.
Imported Thin Blade Electric Adjust Thin Blade Slitter Scorer Machine
Thin Blade Slitter Scorer Machine allows you to adjust slitter and scoring blades with push of a button and pneumatically lock them at the right position. It is our must have offering for commercial corrugation manufacturers who are looking to produce high quality corrugated boxes at a high speed while preserving the edges and flutes.
featured product
Imported 3 Ply Semi Automatic Flute Laminator
Semi-Automatic flute laminating with Height top feeder suitable for bottom cardboard and cardboard of 350 grams or more, the cardboard and A/B/C/D/E/F and double-layer corrugated cardboard.
Max. Speed: 108m/min
Semi-Automatic flute laminating with Height top feeder suitable for bottom cardboard and cardboard of 350 grams or more, the cardboard and A/B/C/D/E/F and double-layer corrugated cardboard.
