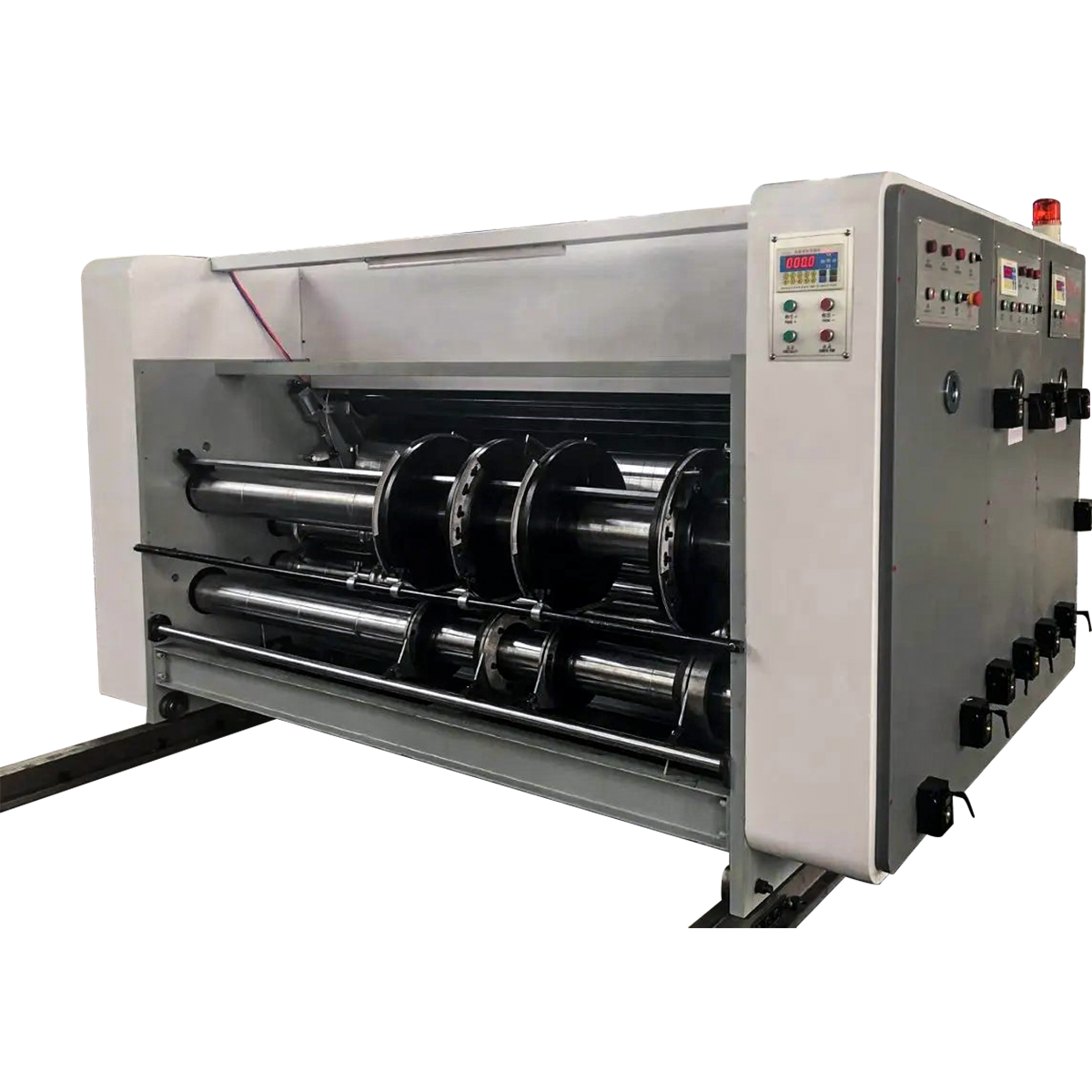

Imported Chain Feeder Printer With Rotary Creaser Slotter (Rs.4) Machine
Chain Feeder MultiColor Flexo Printer for corrugated boxes is used for printing corrugated board at a high speed with best in class quality. With our flexo printer you can target 18,000-30,000 corrugated boards in a day depending on number of SKUs.
Capability and Features
Chain Feeder MultiColor Flexo Printer for corrugated boxes is used for printing corrugated board at a high speed with best in class quality. With our flexo printer you can target 18,000-30,000 corrugated boards in a day depending on number of SKUs.
Key features:
- Helical tooth gears on main drive which adopted 45# steel, treated with gear shaving with high precision facility, closed spray lubrication system, put oil before run the machine, can lower down the noise, decrease the abrasion of gears, and prolong the lifetime of gears
- Adopt the planetary gears phase for the printer slotter driving structure, precise and durable. Phase adjustment adopt Taiwan motor and high quality sensor control, precision is ±0.1mm, exact and reliable.
- All bearings of Chain Feeder Multi color Printing use HRB brand.
- Chain Feeder Multicolor Printing Machine adopts electrical separation, pneumatic locking, pneumatic edition lifting, electric ink distribution, can realize the ink continuous supplying when stop the machine, avoid the ink drying and fading phenomenon when machine stop will affect the printing effect.
- Chain Feeder Multicolor Printing Machine adopt separation positioning by pneumatic, keep the gears engage position not change when machine separated, the dimensions will not change, improving the production efficiency.
- Chain Feeder Multicolor Printing Machine adopt cross-head shoe, for the paper 1mm-11mm thickness, the gears meshing gap keep the same, assure the printing precision and prolong the gears using lifetime.
- Ink guiding system adopt high precision anilox roller with independent motor for ink distribution, high quality diaphragm pump supply ink, can adjust the ink volume randomly, improved the ink supplying more average.
- Chain Feeder Multicolor Printing Machine adopts electrical counter, can control the paper qty exactly, match with warning alarm, can warn workers to keep safe when open or adjust the machine.
- The walking rail material is casting, improving the machine stability.
Additional model available 2200,2800 on request
Color unit available 1-4 color
Additional accessories available (Optional)
- Auto Conveyor Feeder
- Auto Stacker
Technologic parameter
Technologic parameter
| Model | 2400x1400 | 2600x1400 | 2600x1600 |
| Production speed | 60pcs/min | 60pcs/min | 60pcs/min |
| Max printing size | 1400*2200mm | 1400*2400mm | 1600*2400mm |
| Max feeding size | 1200*2400mm | 1400*2600mm | 1600*2600mm |
| Min feeding size | 400*720mm | 450*720 | 450*720 |
| Paperboard thickness | 2-11mm | 2-11mm | 2-11mm |
Related Product
Imported 5 Ply Fully Automatic Flute Laminator
Fully automatic multilayer flute laminator consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

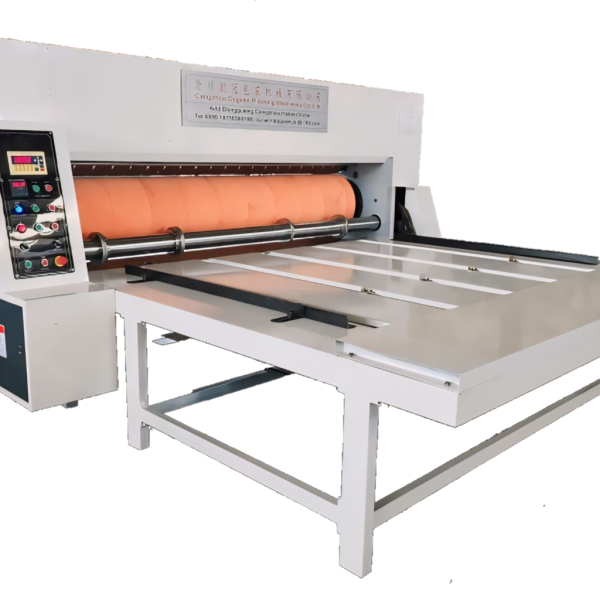

Imported Chain Feeder Printer With Rotary Die Machine
Our Rotary Die Cutting Machine comes with a slotting attachment and can be used to slot, crease, die cut and optionally print paper corrugated boards in one shot. Slotting attachment helps save changeover time and die costs for regular slotted (master or shipper) cartons. Rotary Die technology is more robust in handling corrugated boards from manual or semi automatic plants due to better ability to convert boards with higher moisture content. Hence they are universally preferred in Indian subcontinent, African, Middle Eastern, Vietnam and other markets where manual, semi automatic and automatic plants are found in equal proportion.
Imported Fully Automatic Folder Gluer Machine
Automatic folder gluer is consist of three parts which are feeding paper part, glue folding part and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting and stacking with output. Gluing speed can reach to 150m/min, energy-saving, labor saving.
Imported High Speed Single Facer With Vimble Drive
The Imported Fingerless Corrugation Machine operates efficiently at 35 meters per minute, featuring a robust design with 280 mm flute rolls and 300 mm pre-heater rolls for precise corrugated board formation. It includes a 290 mm pressure roll with dual motor-powered gum application, a Delta AC drive for seamless speed control, and pneumatic controls for roller lifts. Vacuum suction and air conditioning stabilize high-speed production, while durable 46 CrMo alloy steel corrugated rollers and high-temperature bearings ensure reliable performance.
Imported High Speed Square Body Single Facer
The machine is designed for efficient, precise, and user-friendly operation. It features a suction hood structure with a high-pressure blower and silencer for effective material handling and noise reduction. Centralized air and electrical controls enhance safety, while the robust construction ensures durability. A steam spray device regulates core paper moisture, optimizing processing. The advanced drive system, equipped with a frequency conversion motor and durable corrugated rollers, offers precise speed control and quick flute type changes. The machine includes a sophisticated glue section with automated supply, precise control, and easy maintenance, all managed via a touch screen interface for enhanced usability.

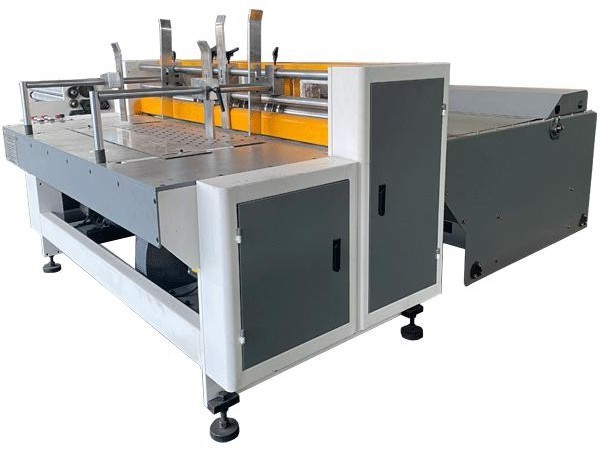

Imported Partition Slotter With Stacker
